TOS TRENČÍN MACHINE TOOLS
SV 18RA

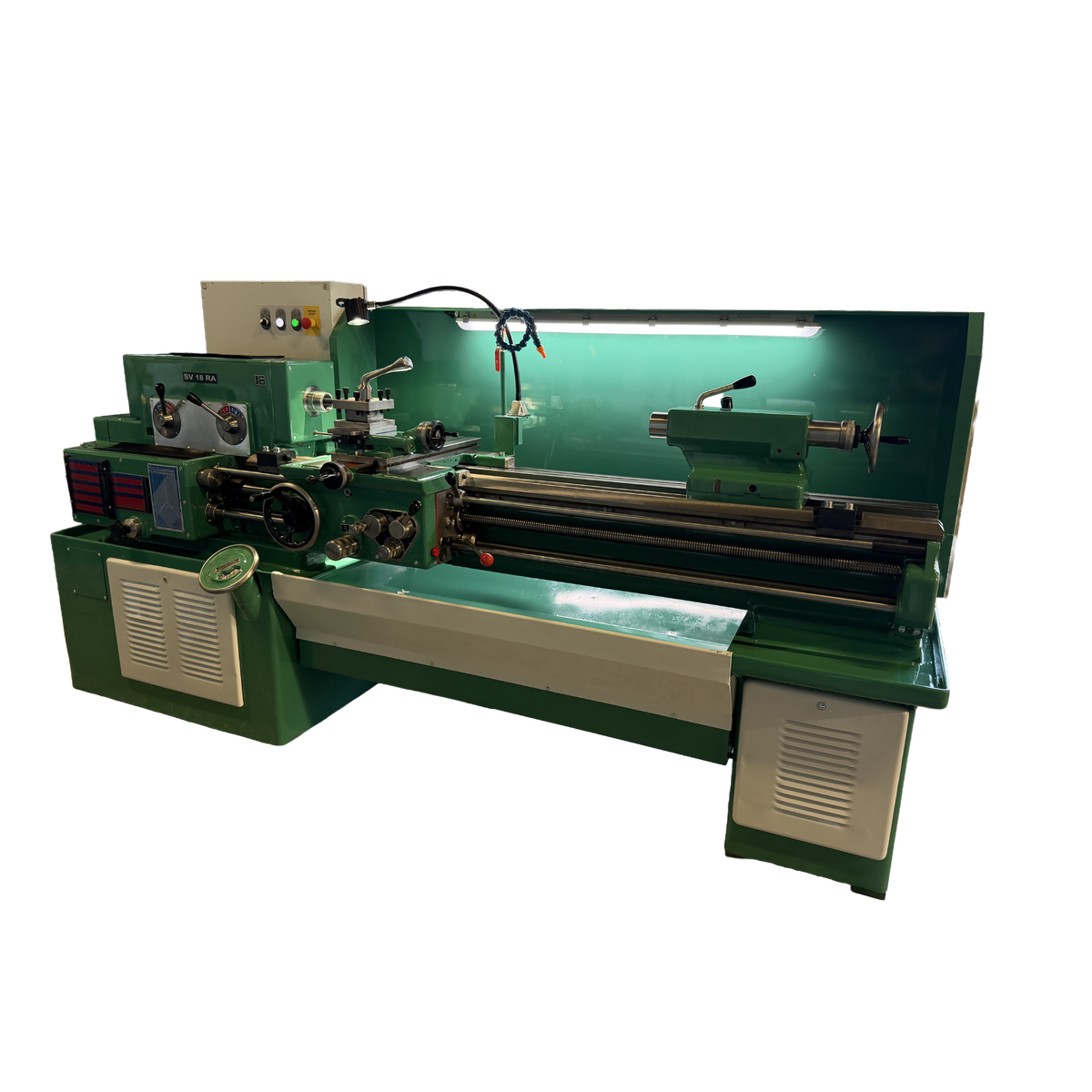

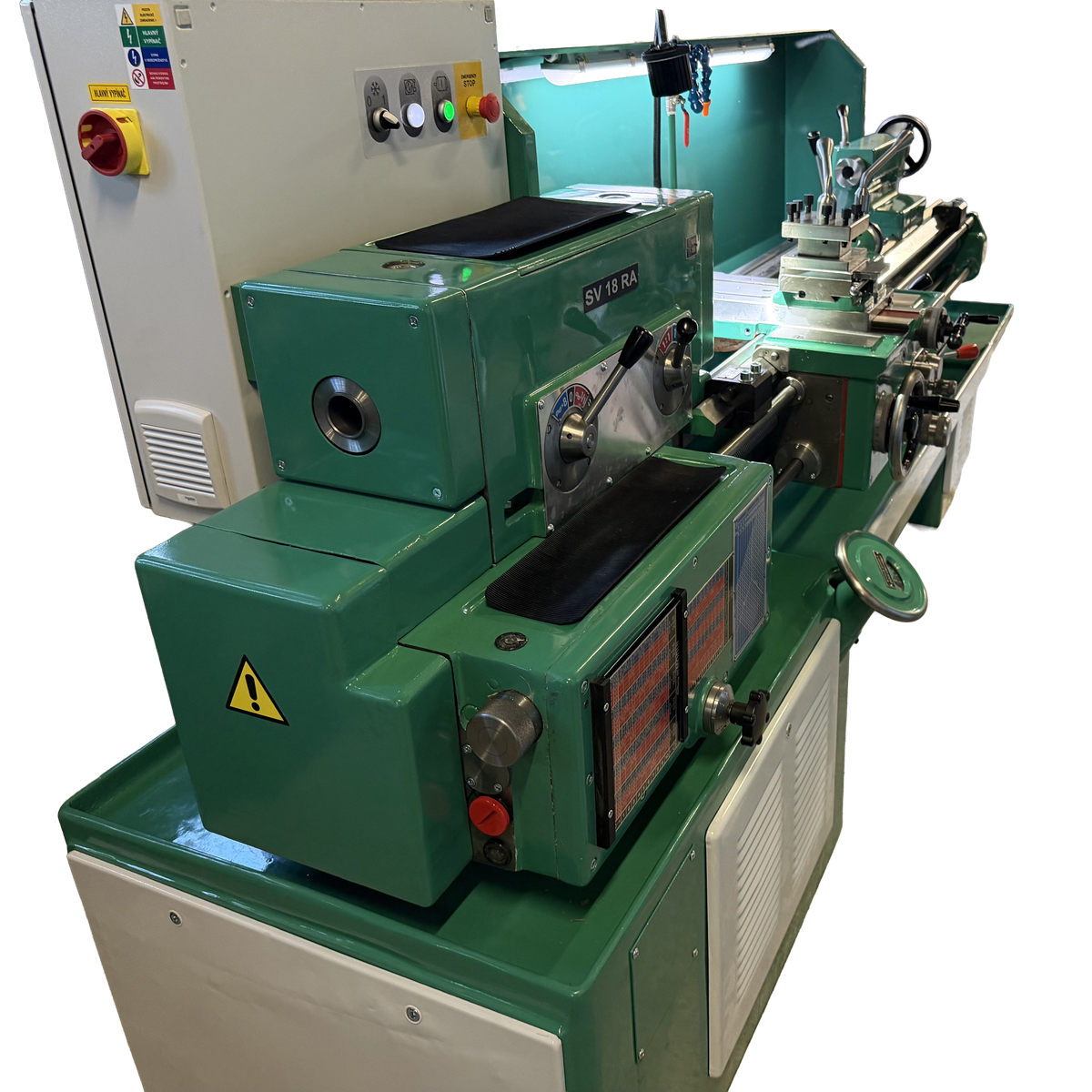

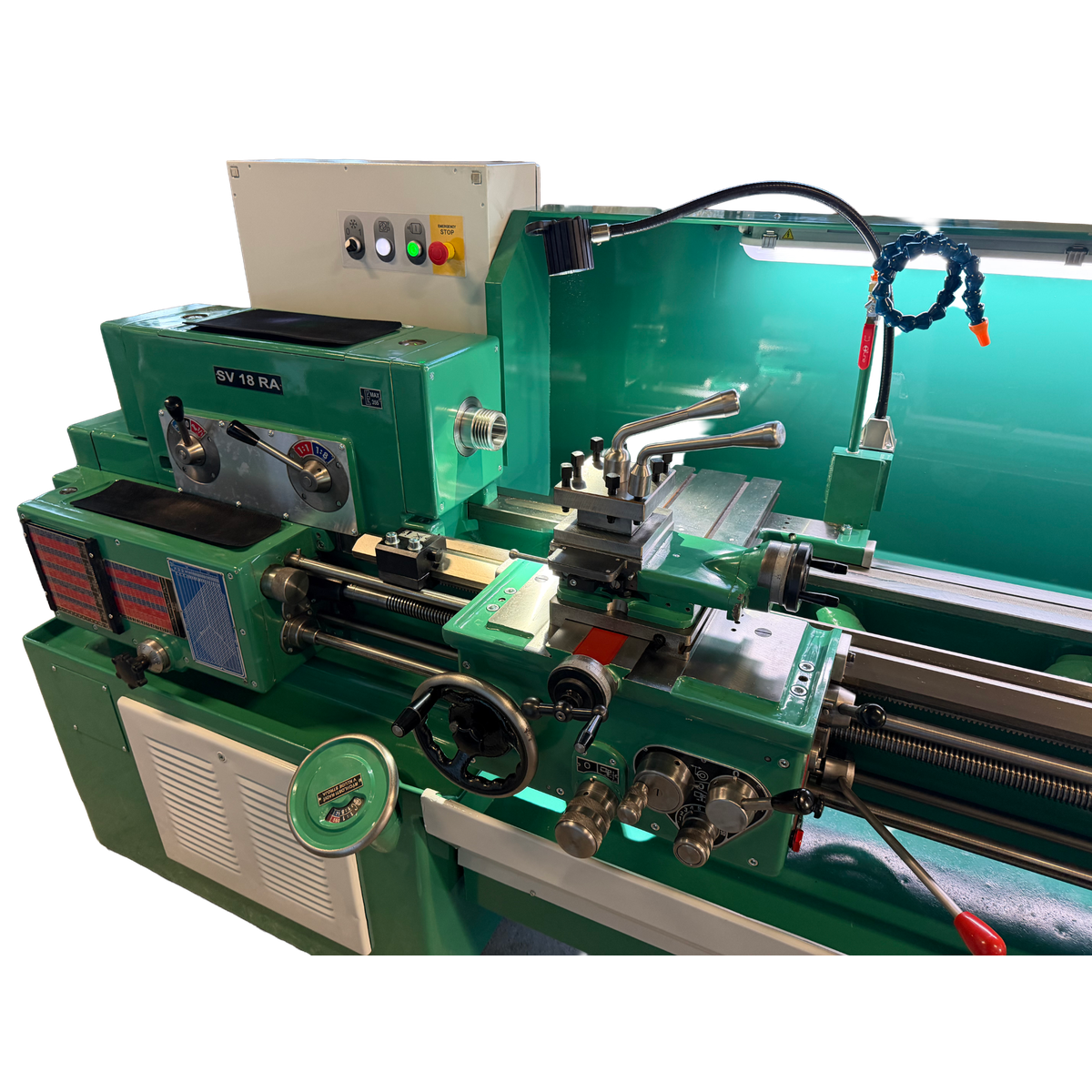

Fully Rebuilt Universal Lathe
AVAILABLE — READY FOR DELIVERY
Professionally rebuilt TOS Trenčín universal lathe,
completely overhauled in our workshop in Trenčín, Slovakia
and prepared for industrial production.
TECHNICAL SPECIFICATIONS
WORKING CAPACITY
Swing over bed: 380 mm
Swing over cross slide: 215 mm
Distance between centers: 1,000 mm
Maximum tool size: 22 × 22 mm
SPINDLE & DRIVE
Spindle bore: 41 mm
Spindle nose: M68
Spindle speed range: 14–2,800 rpm
Main motor power: 6 kW
DIMENSIONS & WEIGHT
Machine weight: 1,800 kg
Overall dimensions (L × W × H):
2,720 × 950 × 1,000 mm
MECHANICAL OVERHAUL
Complete mechanical overhaul of the machine, including inspection and refurbishment of key mechanical components.
PRECISION & GEOMETRY
Machine geometry is checked and adjusted during the rebuilding process to restore precision and reliable operation.
ELECTRICAL & FINAL TESTING
Electrical and safety systems are refurbished, followed by final testing before the machine is released for delivery.
INTERESTED IN THIS MACHINE?
Contact us for price, availability, delivery options and additional technical information.
