Find spare parts for TOS Trenčín machine tools by machine series and model. Original specifications, replacement parts and expert technical support.

Find a part in our catalogue

Search the parts we offer by machine model, function, part number or drawing number. Check the product details for the exact version.

Download a spare parts catalogue — choose model and language

A model match helps narrow the catalogue. Confirm the version, dimensions and serial number before ordering.

Matching parts: 103

Request this part

Shop Parts by Machine Series

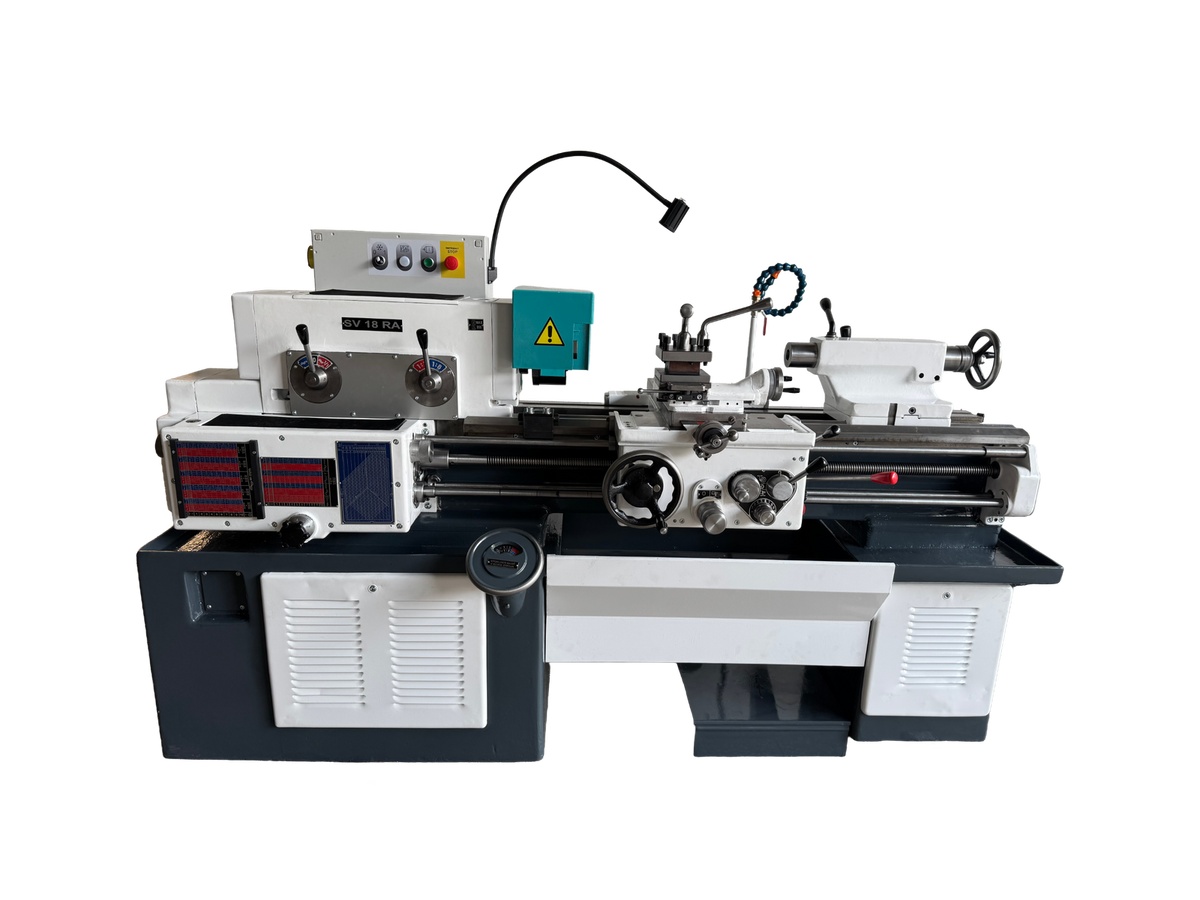

TOS SV 18 Lathe Spare Parts

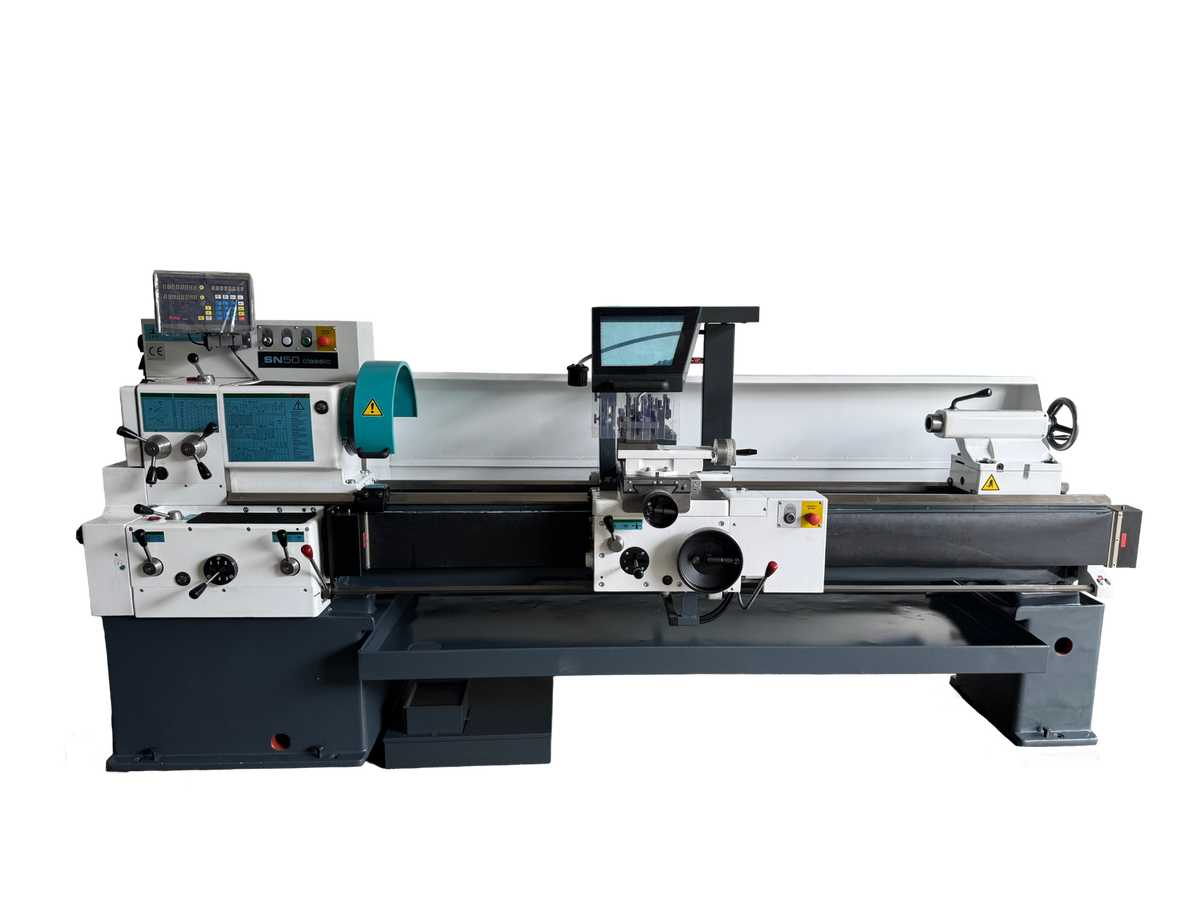

TOS SN Series Lathe Spare Parts

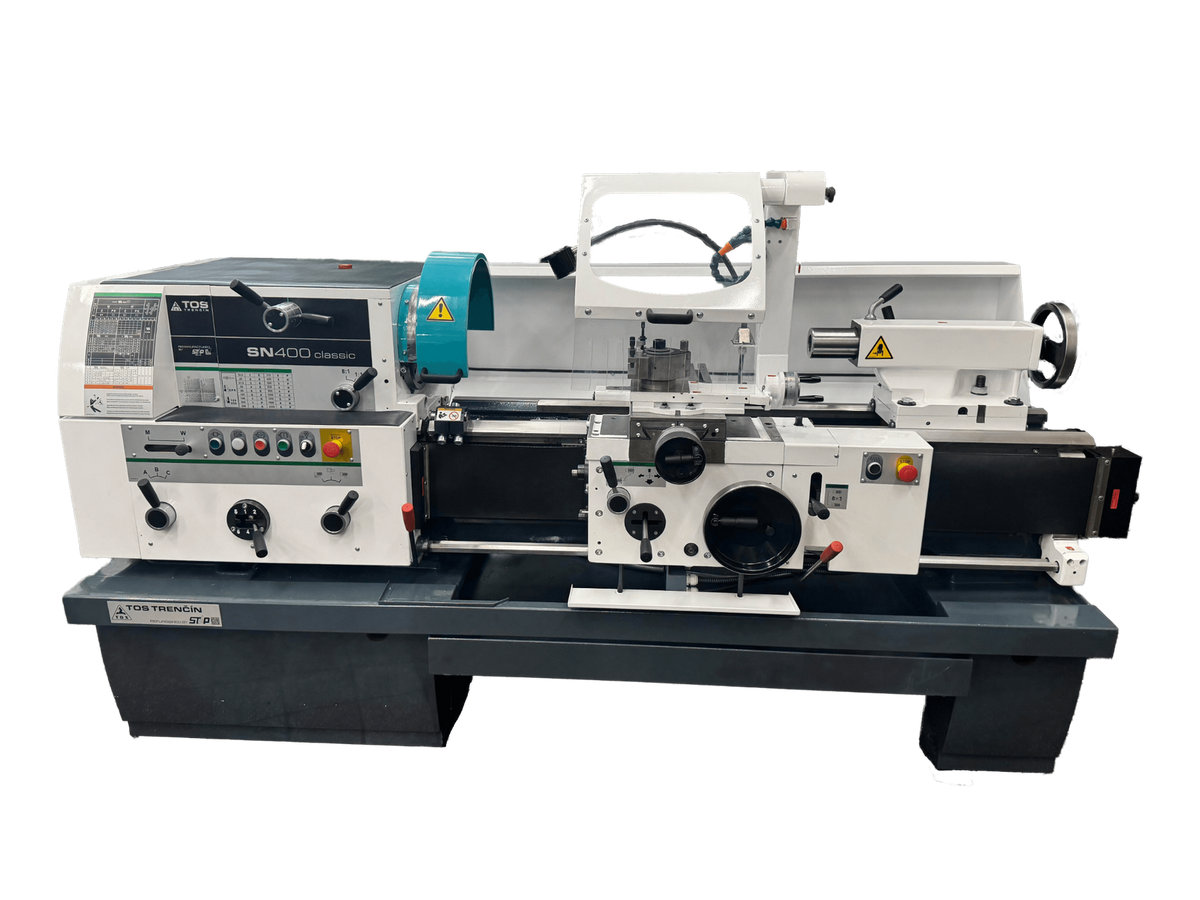

TOS UNIS 400 & UNIS 500 Lathe Spare Parts

Catalogues, drawings and service notes

Identify the assembly and quote the part or drawing number. We check the machine version before supply.

SN 40C / SN 50C

44 pages · PDF · 17.7 MB · Free download

Slovenčina · PDF English · PDF Deutsch · PDF

SN 55 / SN 63 / SN 71 — A & B

34 pages · PDF · 7.4 MB · Free download

Slovenčina · PDF English · PDF Deutsch · PDF

Catalogue quantities describe the machine assembly, not stock or sales pack sizes. Current availability is shown on the product or confirmed with your enquiry.

Source assembly drawings

The drawing is an assembly reference for the stated source model. SN 40 / SN 45 or SN 55 / SN 63 and later C/S versions may differ. Confirm the part number, dimensions and machine serial number before ordering.

Cross-slide screw or tool-slide screw?

The cross slide moves across the lathe axis; the upper tool slide sits on the swivel base and moves the tool at the set angle. Specify which slide is affected. For a screw and nut, send total length, threaded length, outside thread diameter, pitch or TPI, thread hand, end-journal sizes and nut mounting dimensions, plus photos.

A statement such as 8 TPI specifies pitch (3.175 mm); it does not by itself identify the thread profile or a compatible screw. Keep metric and inch versions separate.

SN 50: Cross slide (17) · SN 71: Cross slide (23)

SN 55 / SN 63 / SN 71: clutch slipping - adjustment and parts identification

The supplied operating-manual extract says the clutches are factory adjusted. Adjustment is needed only if the clutch slips and is performed after the clutch has cooled. A slipping clutch should not be used to regulate spindle speed.

For the arrangement shown in the SN 55-63-71 extract, looking through the rear opening, clutch A is left and B is right. The thrust nut is secured by a screw; turning it by 15 degrees reduces clearance by 0.083 mm. This is an incremental adjustment, not a universal clearance setting. Use the complete source procedure and verify the exact machine arrangement.

The engaged clutch must transmit without slipping; the disengaged clutch must not drive the spindle. Over-tightening can cause heating. Service and adjustment belong to a qualified technician with the machine safely isolated as required by the operation.

This extract is for SN 55-63-71. The supplied SN 50 documentation describes a different A/B orientation; do not transfer the directions to SN 50.

Read the source operating-manual extract - clutch adjustment (PDF, Slovak)

Find offered parts in the catalogue

Free printed catalogue on qualifying parts orders over €500

Receive one matching printed catalogue free when the parts subtotal for a model group exceeds €500 after discounts, excluding VAT and shipping. SN 40 / SN 45 / SN 50 parts qualify for the SN 40C / SN 50C catalogue; SN 55 / SN 63 / SN 71 parts qualify for the A/B catalogue. The €500 threshold applies separately to each group. Exactly €500 does not qualify. We include the catalogue with the qualifying parts shipment.

Available in Slovak, English or German. State your preferred language in the order note; otherwise we use the order language (English for other languages). PDF editions are free to download without an order. The catalogue is an identification aid; confirm compatibility with your machine version.

Can't Find Your Part?

Send us a photo, drawing number or machine model
and our team will help identify the correct part.

REQUEST A PART

Country/Region

Language

Country/Region

Language

Find a part in our catalogue

Apron Half Nut 807 189 – 1 pc

Oil Sight Glass M24 – STAP-OS-001

Oil Sight Glass M36 – STAP-OS-002

Apron Clutch Lever Half Rings – 807 034

Apron Clutch Lever Hub 22mm – 807 067

Apron Clutch Lever Hub 27mm – 807 067

Apron Clutch Worm Shaft – No Rapid Feed – 807 048

Apron Gear – 807 181

Apron Support Bushing – 807 157

Block – 803 106

Lathe Roller Guard Set – TL 1500 mm – STAP-RG-002

Lathe Roller Guard Set – TL 2000 mm – STAP-RG-003

Lathe Roller Guard Set – TL 750 & 1000 mm – STAP-RG-001

SN 32/40 & SN 50 Internal Clutch Friction Disc Set – 16 pcs

SN 32/40/45/50 External Brake Friction Disc Set – 6 pcs

SN 32/40/45/50 External Clutch Friction Disc Set – 14 pcs

SN 32/40/45/50 Internal Brake Friction Disc Set – 5 pcs

SN 32/40/45/50 Tailstock Screw & Nut – 805 322

SN 32/40/45/50 Tool Post Screw M12 – 804 514

SN 32/40/45/50 Tool Slide Clamping Screw – 804 073

SN 32/40/50/55/63/71 Lever – 803 211

SN 32/40/50 Clutch Shaft – 803 036

SN 32/40/50 Tool Slide Screw & Nut – Inch 8 TPI

SN 32/40/50 Tool Slide Screw & Nut – Metric

SN 32 Cross Slide Screw & Nut – Metric

SN 32 Fixed Steady Rest – 10–115 mm – STAP-SR-001

SN 32–71/400–710 Apron 4-Way Lever – 807 097

SN 32–71/400–710 Apron Handwheel with Folding Handle – 807 608

SN 32–71/400–710 Apron Handwheel – Old Version – 807 162

SN 32–71/400–710 Change Gear Module 1.5 – 803 092

SN 32–71/400–710 Change Gear Washer – 803 252

SN 32–71/400–710 Coolant Hose Segment Set – STAP-CH-001

SN 32–71/400–710 Coolant Pump – 120 mm – STAP-CP-002

SN 32–71/400–710 Coolant Pump – 70 mm – STAP-CP-001

SN 32–71/400–710 Thread Cutting Gearbox Lever – 806 117

SN 32–71/500–710 Apron Folding Handle – STAP-FH-002

SN 32–71/500–710 Bronze Change Gear Bushing – 803 117

SN 32–71/500–710 Front Shifter SET – 807 124

SN 32–71/500–710 Front Shifter – 807 124

SN 32–71/500–710 Handwheel Pinion – 807 180

SN 32–71/500–710 Rack Pinion – 807 035

SN 32–71/500–710 Rear Shifter SET – 807 008

SN 32–71/500–710 Rear Shifter – 807 008

SN 32–71/500–710 Shear Pin – 806 151

SN 32–71/500–710 Shifter Wheel – 807 045

SN 32–71/500–710 Z-Axis Folding Handle – STAP-FH-001

SN 40/45/50 Pinion – 804 017

SN 40/45/50 Tool Post Bushing – 804 256

SN 40/45/50 Tool Post Socket Spanner – 804 031

SN 40/45 Cross Slide Screw & Nut – Inch 5 TPI

SN 40/45 Cross Slide Screw & Nut – Inch 8 TPI

SN 40/45 Cross Slide Screw & Nut – Metric

SN 40-50/55/63/71 Control Transformer 400 VA – STAP-CT-001

SN 40-50/55/63/71 Oil Filter – 813 019

SN 40-50/55/63/71 Rapid Feed Worm – Type B – 883 030

SN 40-50/55/63/71 Rapid Feed Worm – Type C

SN 40-50/55/63/71 Rapid Traverse Bushing – Type B

SN 40-50/55/63/71 Rapid Traverse Cam Set Ø40 mm – Type C

SN 40-50/55/63/71 Rapid Traverse Cam Set Ø42 mm – Type B

SN 40-50 Wiper Set – STAP-WS-001

SN 40 B/50 B Spindle Bearing Set – 3 pcs

SN 40–71/400–710 Brass Worm Wheel – 883 028

SN 40–71/400–710 Rapid Feed Motor Gear – 883 434

SN 40–71/400–710 Rapid Traverse Bushing – Type C

SN 40–71/500–710 Gear Wheel – 883 435

SN 40–71/500–710 Gear Wheel – 883 436

SN 50 Complete Taper Turning Attachment – Overhauled – STAP-TA-001

SN 50 Complete Tool Slide Assembly with Tool Post – 804059

SN 50 Cross Slide Screw & Nut – Inch 5 TPI

SN 50 Cross Slide Screw & Nut – Inch 8 TPI

SN 50 Cross Slide Screw & Nut – Metric

SN 50 Fixed Steady Rest – New – STAP-SR-005

SN 50 Follow Rest – 10–115 mm – STAP-SR-003

SN 50 Follow Rest – Eccentric Adjustment – Refurbished – STAP-SR-006

SN 50 Gearbox Lubrication Oil Pump – New – Complete Set with 2 Gears
