TOS TRENČÍN MACHINE TOOLS

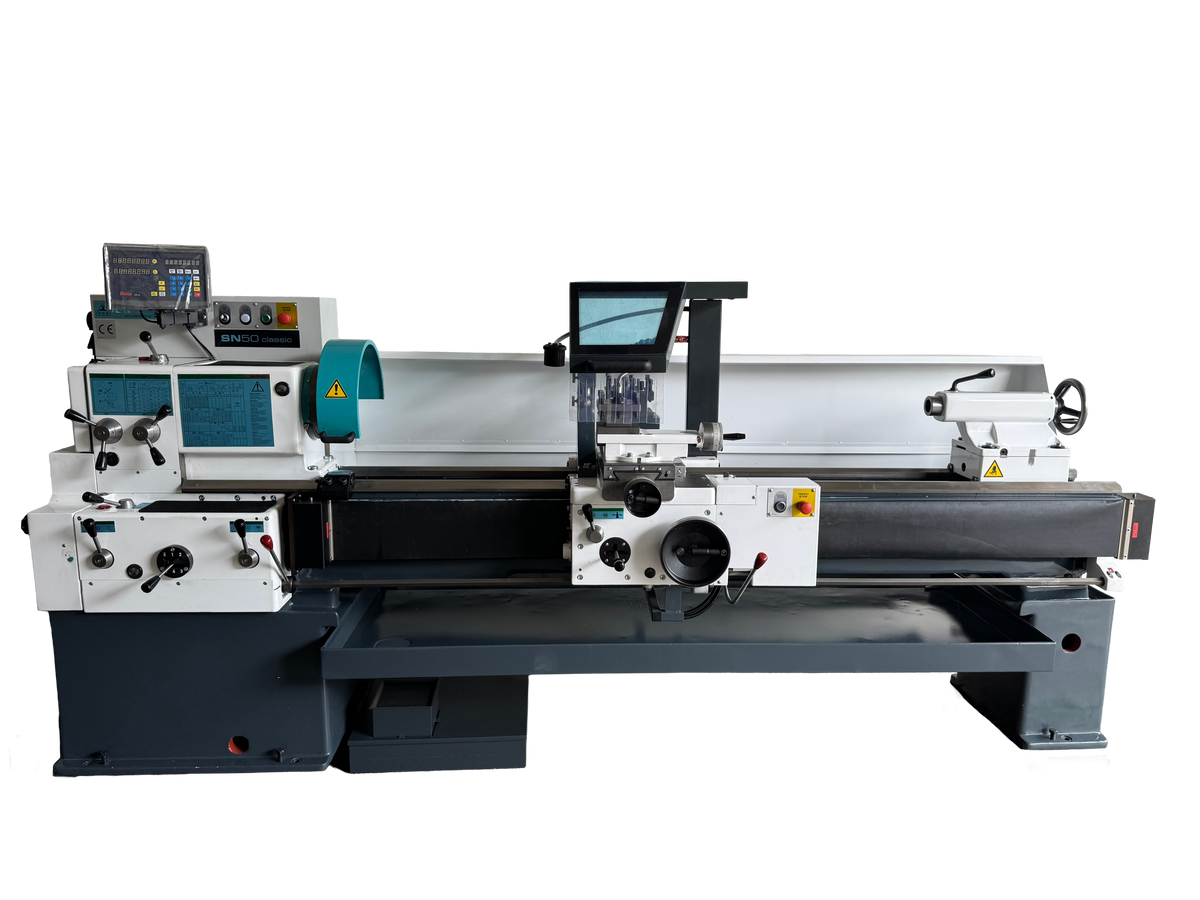

SN 50 Classic
Fully Rebuilt Universal Lathe
AVAILABLE — READY FOR DELIVERY
Professionally rebuilt TOS Trenčín universal lathe,
completely overhauled in our workshop in Trenčín, Slovakia
and prepared for industrial production.
TECHNICAL SPECIFICATIONS
WORKING CAPACITY
Swing over bed: 500 mm
Swing over cross slide: 270 mm
Swing in gap: 700 mm
Distance between centers: 2,000 mm
SPINDLE & DRIVE
Spindle bore: 51 mm
Spindle speed range: 45–2,000 rpm
Tailstock taper: Morse 5
Main motor power: 6 kW
DIMENSIONS & WEIGHT
Machine weight: 1,850 kg
Overall dimensions (L × W × H): 3,575 × 1,220 × 1,530 mm
MECHANICAL OVERHAUL
Complete mechanical overhaul of the machine, including inspection and refurbishment of key mechanical components.
PRECISION & GEOMETRY
Machine geometry is checked and adjusted during the rebuilding process to restore precision and reliable operation.
ELECTRICAL & FINAL TESTING
Electrical and safety systems are refurbished, followed by final testing before the machine is released for delivery.
INTERESTED IN THIS MACHINE?
Contact us for price, availability, delivery options and additional technical information.
